The world of fabrication is made significantly easier with tools designed to develop precise layouts for a variety of shapes commonly used in the industry. Our app is a game-changer, reducing fabrication time and boosting accuracy to new heights. Here's a comprehensive look at the flat pattern options available within our application:

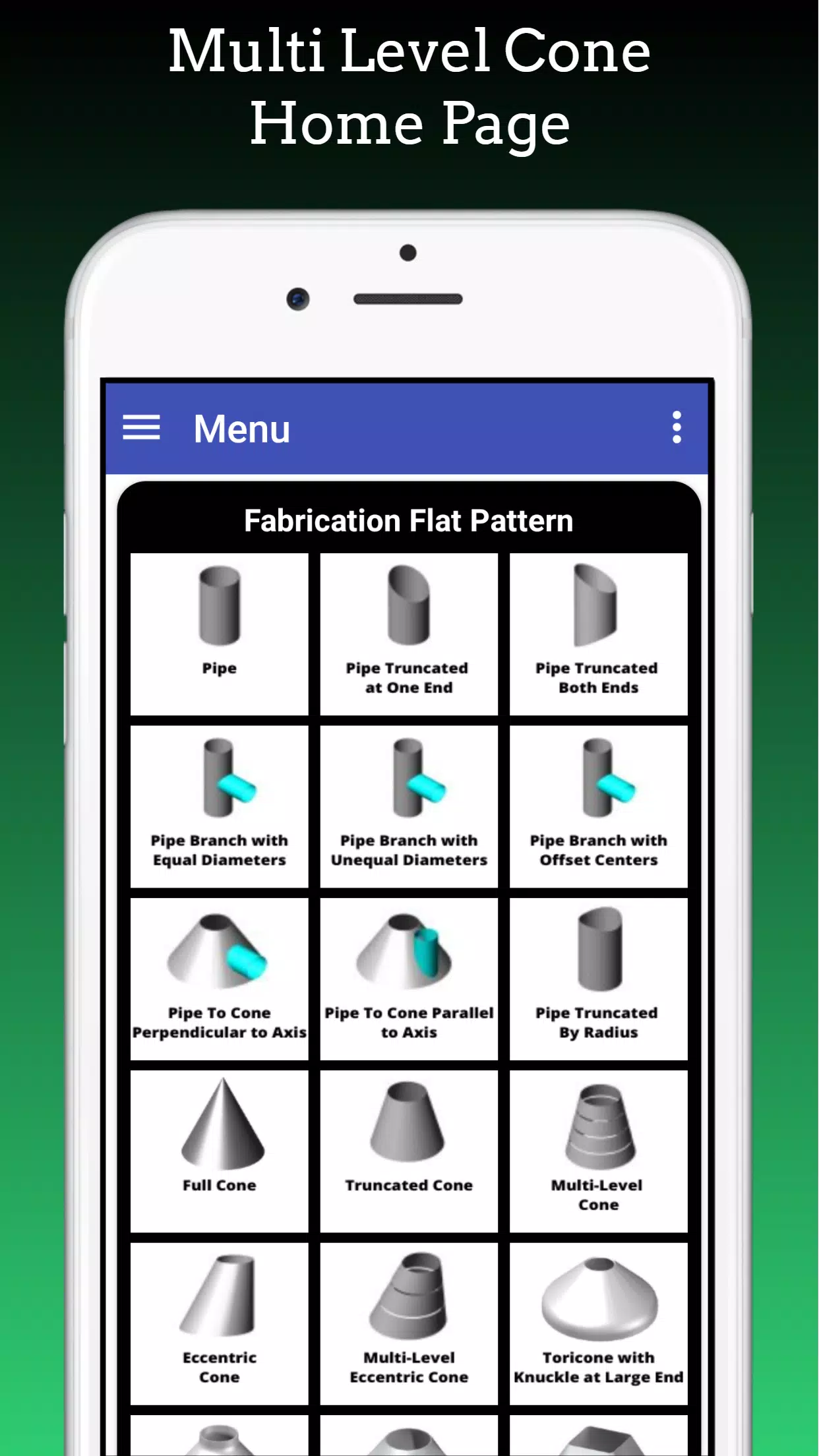

• Pipe Layout or Shell Layout or Pipe Flat Pattern: Essential for creating seamless pipe structures.
• Truncated Pipe Layout or Pipe cut at any angle Flat Pattern: Perfect for pipes cut at specific angles.
• Truncated Pipe at Both End Layout or Pipe cut by an angle on both sides Flat Pattern: Ideal for complex pipe configurations.
• Pipe to Pipe Intersection with equal Diameters or Pipe Branch Connection Flat Pattern: For connecting pipes of the same size.
• Pipe to Pipe Intersection with unequal diameters or Pipe Branch Connection Flat Pattern: For connecting pipes of different sizes.
• Pipe to Pipe Intersection with offset diameters or Pipe Branch Connection Flat Pattern: For offset pipe connections.
• Pipe to Cone Intersection at Perpendicular to Axis Flat Pattern: For perpendicular pipe-to-cone connections.
• Pipe to Cone Intersection at Parallel to Axis Flat Pattern: For parallel pipe-to-cone connections.
• Pipe Truncated by Radius Flat Pattern: For pipes cut with a radius.
• Full Cone Layout Flat Pattern: For complete cone structures.
• Truncated or Half Cone Layout Flat Pattern: For half or truncated cones.

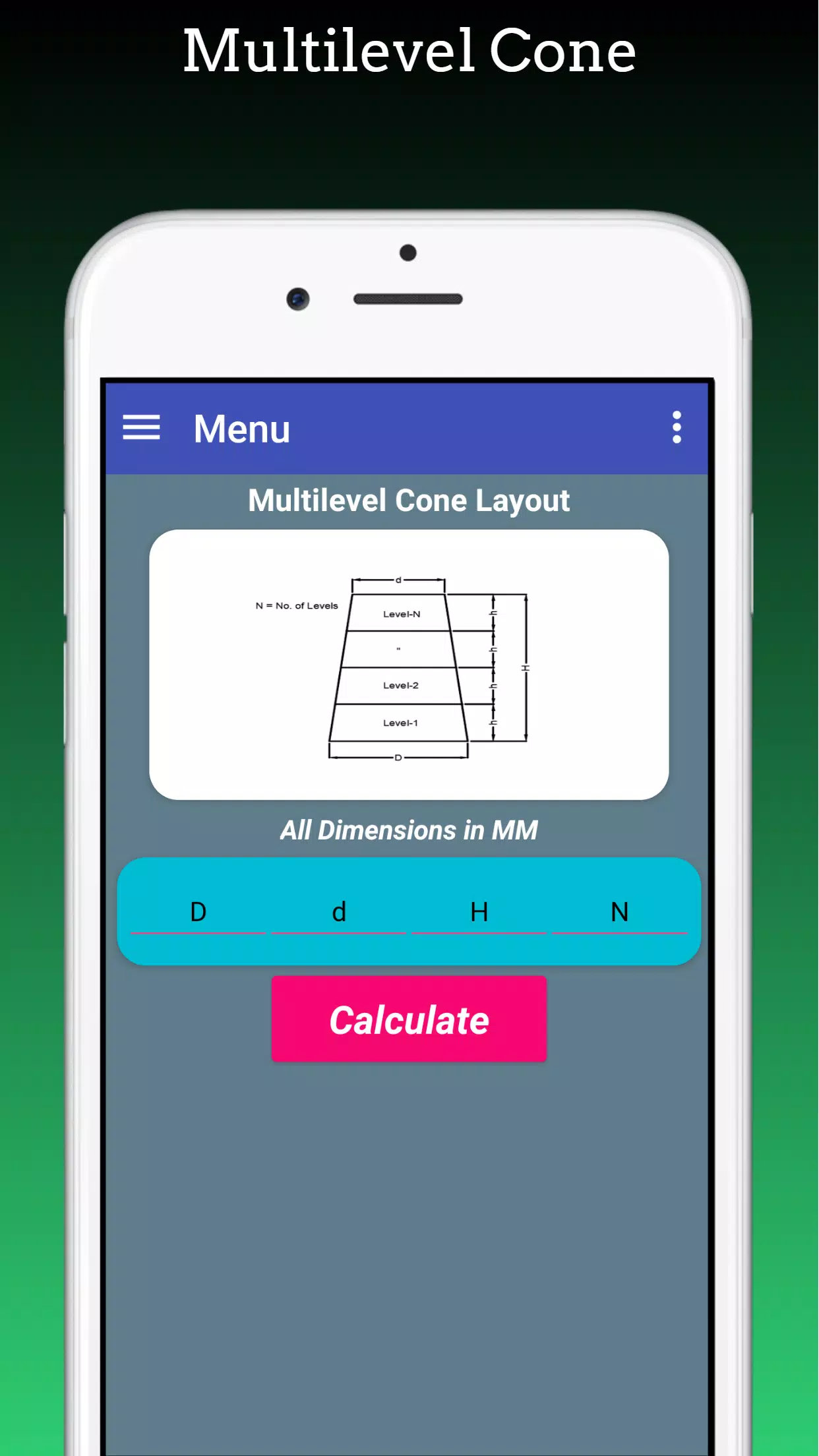

• Multi Level Cone Layout Flat Pattern: For multi-level cone designs.
• Eccentric Cone Layout Flat Pattern: For eccentric cone structures.
• Multilevel Eccentric Cone Layouts Flat Pattern: For complex multi-level eccentric cones.
• Tori Cone with Knuckle Radius at Large End Flat Pattern: For toricone designs with a knuckle radius at the large end.
• Tori Cone with Knuckle Radius at Both Ends Flat Pattern: For toricone designs with knuckle radii at both ends.
• Rectangle to Round or Square to Round Transition Layout Flat Pattern: For transitioning from square or rectangular to round shapes.
• Round to Rectangle or Round to Square Transition Layout Flat Pattern: For transitioning from round to square or rectangular shapes.
• Pyramid Layout Flat Pattern: For pyramid structures.
• Truncated Pyramid Layout Flat Pattern: For truncated pyramid designs.
• Sphere Petal Layouts Flat Pattern: For spherical structures.
• Dish End Petal Layouts Flat Pattern: For dish end designs.
• Miter Bend Layout Flat Pattern: For miter bend configurations.
• Screw Flight Layout Flat Pattern: For screw flight designs.

Our application encompasses a wide range of shapes, including cones, shells, pipes, pipe branch connections, full cones, half cones, truncated cones, square to round, round to square, rectangular to round, round to rectangular, pyramids, truncated pyramids, cone to pipe branches, spheres, and dish ends. This tool is invaluable for professionals involved in various sectors such as:

• Pressure vessel fabrication
• Process equipment fabrication
• Welding
• Piping
• Insulation
• Ducting
• Heavy equipment fabrication
• Storage tank construction
• Agitator manufacturing
• Mechanical equipment production
• Structural engineering
• Industrial fabrication
• Heat exchanger manufacturing

This app is an essential tool for production engineers, fabrication engineers, planning engineers, costing and estimating engineers, project engineers, fabrication contractors, supervisors, fitters, and workers. It streamlines the fabrication process, ensuring precision and efficiency across a broad spectrum of applications.
